Transmission box Location:Home-Products-Transmission box

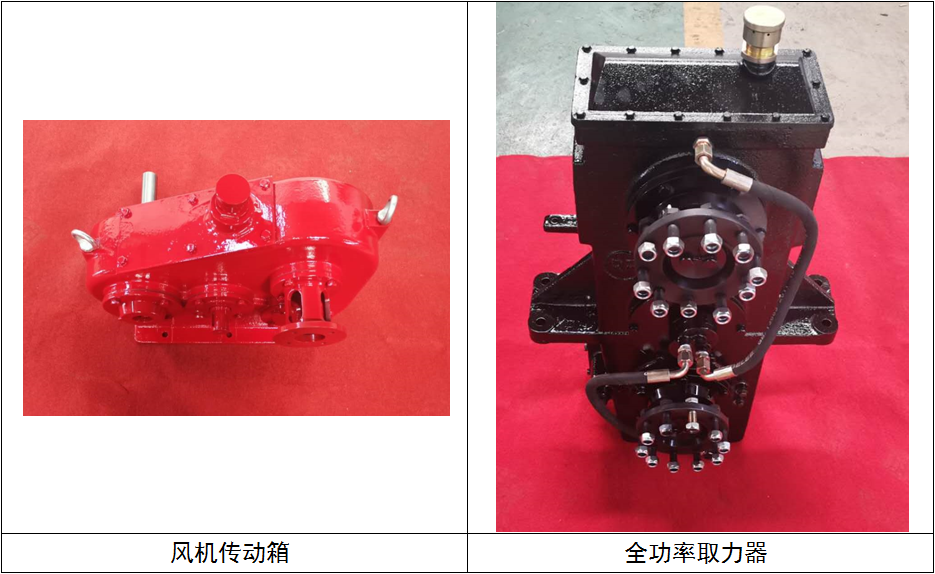

Product introduction: the gearbox is mainly driven by gear pair, which is divided into fan gearbox and PTO of full power. It is the core part of the well flushing-wax removaltruck and boiler truck. The former can provide a higher speed to drive the centrifugal blower, and the latter can provide a higher power/torque to drive the triplex plunger pump.

Product features: it adopts splash lubrication or forced lubrication, with stable operation, sufficient power, low noise, simple operation, convenient maintenance, long service life, etc.


Main Technical Parameters

Name

Unit

Parameter

Fan Gearbox

Model

/

FCD3000

Input power

kW

30

Input speed

rpm

1289

Lubrication mode

/

Splash lubrication

Fan drive shafting

Fan shaft speed

rpm

2900

Speed ratio

/

0.44444

Oil pump drive shafting

Fuel pump shaft speed

rpm

3006

Speed ratio

/

0.42867

PTO of Full Power

Model

/

QLQ1800

Input speed

rpm

2100

Driving power

kW

320

Driving torque

N.m

18000

Take-off power

kW

280

Take-off torque

N.m

15000

Ratio of force to speed

/

1.0

Manipulation mode

/

氣動控制

Lubrication mode

/

Splash lubrication and oil pump   forced lubrication
